In this article we are going to see how to build a microphone amplifier circuit with operational amplifier LM324. This circuit can be used as good pre-amplifier for audio projects.
Selecting an Opamp
The heart of the mic amplifier circuit is an op-ampLM324 which is quad op-amp moulded in single IC. We are going to use one of them for our project. Readers can try different op-amp such as IC 741 etc or IC LM321.
Microphone is a device which converts sound waves into electrical signals. But the raw electrical signal from the microphone is not enough to process signals for your project.
A typical microphone used for hobby projects may give out approximately 0.02V peak to peak signal, which is insufficient to detect by an IC or microcontroller. To produce higher voltage signal, we would need an amplifier.
Gain of an OpAmp
The major advantage of an op-amp based amplifier is that we can adjust the gain by changing the specific resistor values.
The gain of the shown amplifier is given by:
Gain=1+ (R2/R1)
If we are connecting a headphone at the output, we need at least 2V peak to peak signal in order to hear reasonable amount of sound. So, we need to amplify the given signal by at least 100 times.
Output = 0.02V x 100 = 2V
The amount or the times by which you are going to amplify the input signal is called “gain”. Here the gain is 100. It is a dimensionless value, hence there's no unit.
The Design:
It is recommended to keep R1 value constant for beginners and change R2 value for adjusting the gain.
我们在这里保持R1值1 k欧姆和R2 100K ohm. Applying the gain formula we get 100 as the result.
Gain= 1+ (100K/1K) = 101 (Gain)
So if you are going to connect something more powerful such as a small speaker, we may need to increase the gain yet more.
永远记住,你不能得到更多的东西来m the nothing, therefore we need to apply sufficient voltage at the input.
If you need a peak to peak 10V, you need to apply at least 12V; otherwise clipping might occur at the output. This may not give good and clean sound output.
The proposed microphone amplifier circuit can amplify the input signal thousands of time; this doesn’t mean that you may drive a home theater speaker.
This circuit can merely output the current at mA range. If you need to drive those bulky speakers you may need current greater than 1 ampere.
Pin Diagram:

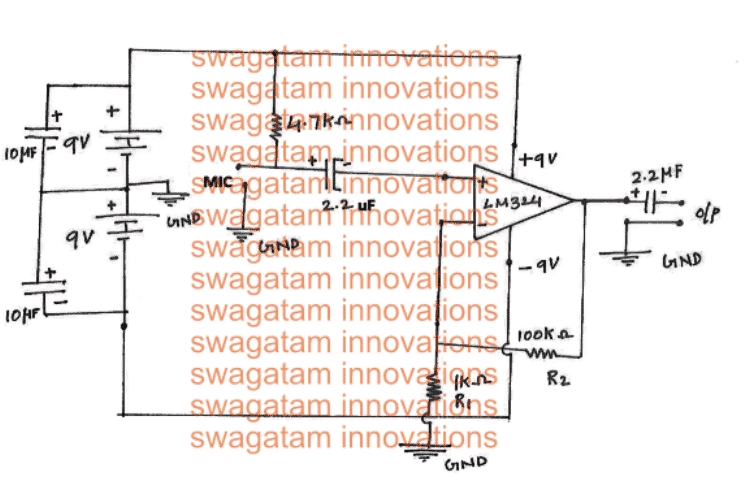

Circuit diagram:
The power source is differential power supply, which consists of two 9V battery coupled with capacitors for smooth and noise less power. 2.2uF capacitor is for eliminating DC voltage entering the IC.
4.7K resistor helps powering the microphone. R1 and R2 is gain adjust resistor, you may calculate your own values. 2.2uf capacitor at the output is to truncate DC components.
MIC Amplifier Circuit using Two Transistors
Crystal and high impedance dynamic microphones typically don't allow us to use it with long wires except when a certain coupling transformer is introduced. This is because hum noise and other stray pick-up can possibly get into the line. But a mini transformer, can be actually, too costly, particularly when high fidelity response is called for.

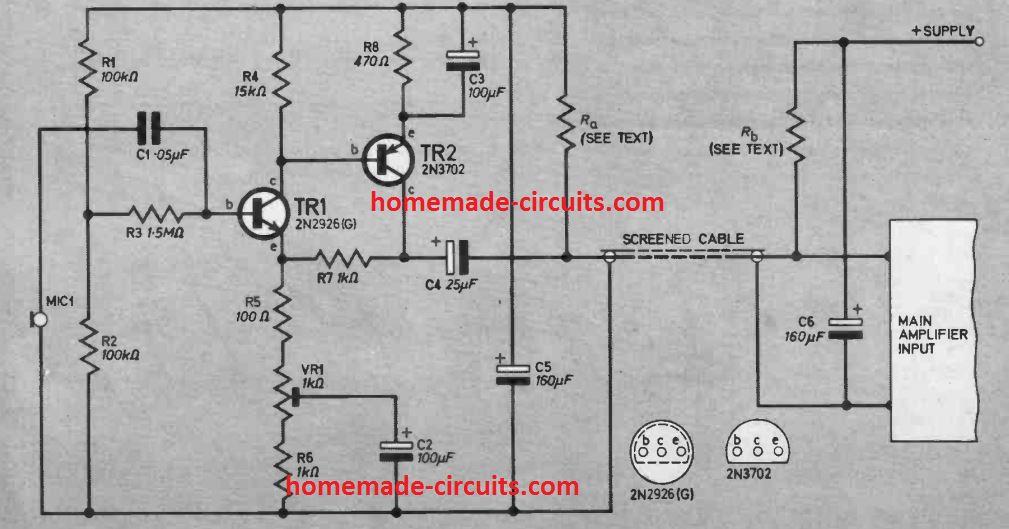

The below idea represents a technique which allows us to use preamplifier even at longer distances from the music or speech input source. This preamplifier is installed at the microphone end that works like an impedance matching transformer (high to low), and simultaneously features a handy voltage gain.
This circuit is unconventional because the power for the preamplifier is extracted from the main power amplifier and is supplied through the same common coaxial dynamic chord.
PREAMP SUPPLY

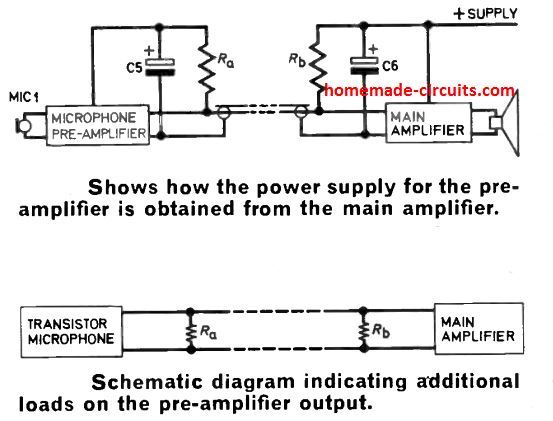

The following figure shows the basic operational details of the design.
Let's first imagine the supply to the preamplifier coming from the main power amplifier unit.
Resistors Ra and Rb establish the voltage delivered to the preamplifier. Consequently, when the pre-amplifier draws a I amp current, the voltage getting at the preamplifier can be calculated by
V preamp = Vs - I(Ra + Rb)
where V is the supply voltage. The pre-amplifier detailed in this article was created to run using at 10V supply.
The current necessary is 2mA. If we consider the voltage tapping on the main amplifier is Vs and if Ra is made equal to Rb, the above equation simplifies to
Ra = Rb = 250(Vs - 10) ohms
It may be important to note at this stage that this specific approach of acquiring the supply voltage from the main amplifier must be applied only with low voltage transistor amplifiers having a highest voltage tapping of 50V.
用于amplif原型iers working with a 20V supply. Any similar transistor amplifier having this type of supply can be employed.
Thefeore considering the amplifier supply is 20V then
Ra = Rb = 2.5K or simply 2.2K, even this value is not so critical, but not lower than this.
