Types of Capacitors Explained

In this post we learn regarding the basics of capacitor, and also regarding the various types of capacitors which are commonly available in the market and used in most electronic circuits.

概述

A capacitor is simply a passive electronic part which is designed to store an electric charge.

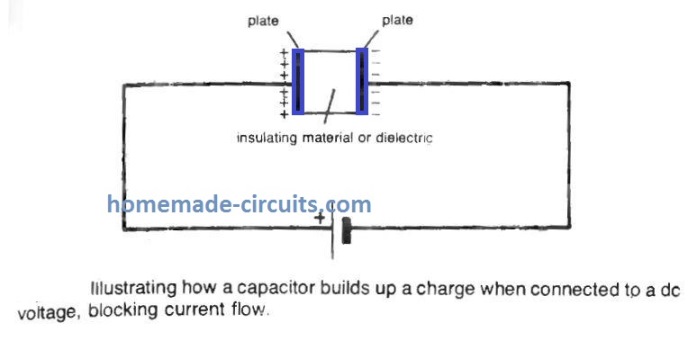

In physical form, it is made of a pair of metal plates or electrodes separated by an insulation content or dielectric. Applying a dc voltage across the capacitor terminals instantly generates a scarcity of electrons on the positive plate and overabundance of electrons on the negative plate, as demonstrated in the following figure.

This differential build up of electrons gives rise to an electric charge, that accumulates a specific level (based on the voltage) after which stays at that level. If a dc is involved, the insulator inside the capacitor works like a blocking system for the flow of current (however might be a slight transient charging current that prevents when the capacitor is completely charged).

When ac is used across the capacitor the charge accumulated throughout half ac cycle gets reversed with the next 2nd half cycle, which causes the capacitor to allow the current through it to run efficiently, as though the dielectric insulation never existed.

Therefore when ac is involved, a capacitor simply works like a coupling device. You will find hardly any electronic circuits carrying ac and not incorporating a few capacitors, possibly for coupling or for optimizing the general frequency response of the system.

In the last mentioned scenario, a capacitor is connected with a resistor to create an RC combination. The charge/discharge occurrence involved with capacitors could also be used in various other circuits e.g. , the photographic electronic flash.

Just like resistors, capacitors could be configured work with fixed values or be adjustable in their magnitude. Fixed capacitors happen to be the primary foundations of a circuit (along with resistors). Variable capacitors mostly are intended for optimizing tuned circuits.

Theperformance parameters of every capacitorare different and thus their applications also differ accordingly.

One of the electronic components’ forms which is used widely is the electronic capacitors. Apart from this, the other capacitors used in the industry include ceramic, silver mica, electrolytic, plastic, tantalum, and others.

Each type of the capacitor is used in various applications according to their respective disadvantages and advantages.

典型的是，必须选择正确的电容器类型作为电容器使用电容器的电路。

Thus, in case a correct type of capacitor is not selected to insert in the circuit on the basis of its parameters, it can result in the improper or faulty functioning of the circuit.

电容器的基础知识

The physical laws which basically govern the various types of capacitors are same and are adhered to accordingly.

These basic laws determine various parameters of the capacitors such as how the capacitor would operate, thevalue of the capacitor, and its capacitance (the maximum amount of charge which the capacitor will hold).

Thus, the basic theory on which capacitors are built and work enables to understand the different capacitors forms and how these can be or are used.

注意：即使介电领域有许多发展，但电容器工作尚未改变并且迄今为止适用的基本法律。

Types of Capacitors and Dielectrics

As discussed above, although the basic laws on which the capacitors work, the properties of the capacitors differ enormously because of the manner in which each type of the capacitor is constructed.

The various properties which various types of capacitors possess is given by their main element which is located between the two plates of the capacitor and is known as “dielectric”.

The dielectric constant of the capacitor can impact the capacitance level which the capacitor can achieve at a given specific volume. Also, various capacitors of different types can be found to be polarized in nature wherein the voltage running across the capacitor is tolerated in one single direction only.

另一方面，可以发现各种类型的各种电容器在本质上是非偏振的，在这种性质上，跨电容器的电压在两个方向上都耐受。

电容器通常是基于电容器中存在的介电的性质命名。

This is indicative of the general properties which the capacitor will be exhibiting along with the various different types of circuit functions where they can be used.

概述of capacitors and its different types

Different forms of design are employed for nonpolarized capacitors, nearly all of which are easily recognized from the style of the capacitor. You don't need to to look into fine detail regarding the real constructions. Their particular features are crucial, although, since these can decide the ideal variety to work with for a specific application.

Non-Polarized Capacitors

1. Paper dielectric capacitors，通常可以通过其管状形状识别，是最便宜但通常笨重的。他们的许多其他关键限制是，它们不适合在1 MHz以上的高频上使用，这实际上将其应用于音频电路。这些通常在0.05 µF至1或2µF的值中发现，其工作电压在200至1,000伏之间。塑料涂层纸电介质电容器可能具有更大的工作电压。
2. Ceramic capacitors在小音频和RF电路中非常受欢迎。这些非常便宜，可以在从1 pf到1 µF的各种值中获得，并具有大量的工作电压，此外，通过非常低的泄漏识别。它们可以在圆盘和圆柱结构中制造，并作为金属陶瓷板制造。
3. Silver-mica capacitorsare costlier than ceramic capacitors but they have outstanding high-frequency working capability and very much smaller tolerances, so are usually considered to be well suited for vital applications. They could be manufactured with extremely high operating voltages.
4. 聚苯乙烯电容器are created from metallic foil separated with a polystyrene film, normally having a integrated polystyrene cover to guarantee an enhanced insulation property. These are known for their minimal losses with high frequencies, excellent stability and consistency. Values could vary from 10 pF to 100,000 pF, however working voltage typically comes down significantly with rising capacitance values.
5. Polycarbonate capacitors通常以矩形碎片的形式制造，最终终止为电线，可以轻松插入PCB孔中。它们在微小的尺寸中提供高值（多达1µF），以及降低损耗和最小电感的特征。就像聚苯乙烯电容器一样，工作电压被较高的电容值妥协。
6. Polyester film capacitorsare likewise manufactured for direct assembly in printed circuit boards, having values from 0.01 µF up to 2.2 µF. These are usually bigger in size compared to polycarbonate capacitors. Their small inner inductance allows them to be specifically well suited for coupling and decoupling functions in electronic circuits. Values of polyester film capacitors are usually mentioned with a color code comprising 5 color rings.
7. Mylar film capacitorscould be considered to be a standard film type capacitor, commonly found in values from 0.001 µF up to 0.22µF, having a operating voltage up to 100 volts dc.

The various types of capacitors which are being used in most electronic circuits are as follows:

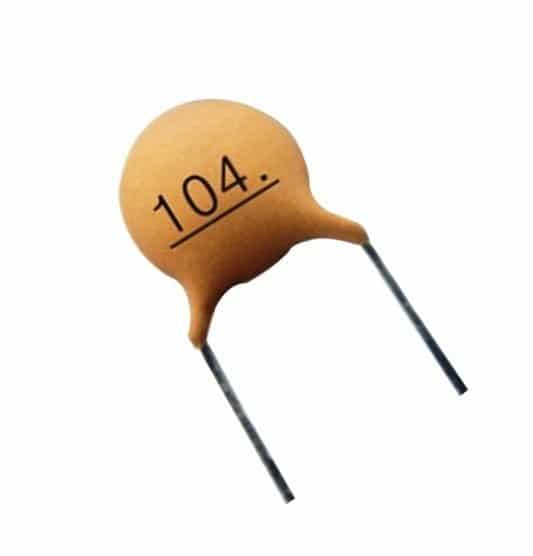

Ceramic Capacitor:

The capacitor namely, ceramic capacitor is used for multiple applications including RF and audio.

陶瓷电容器值的范围是很少的picofarads和0.1微绒面。陶瓷电容器是行业中最广泛使用的，因为它是可用的最可靠，最便宜的电容器类型。

Also, another reason for its common and wide usage is that the loss factor of the ceramic capacitor is very low. But the loss factor of the capacitor is also dependent on the dielectric which is used in the capacitor.

The ceramic capacitors are used in both the formats of surface mount and leaded because of the constructional properties of the capacitors.

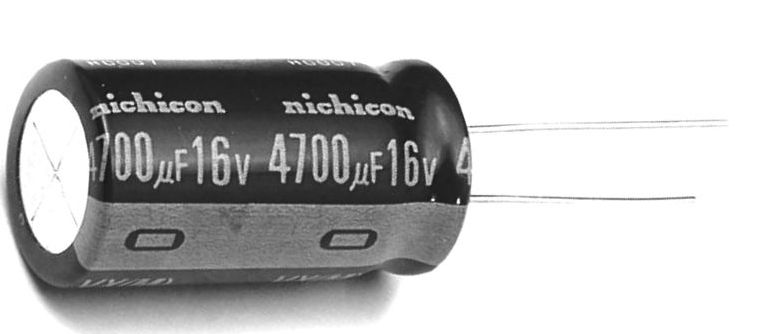

Electrolytic Capacitor:

One type of capacitor which is polarized in nature is electrolytic capacitors.

The capacitance values which are offered by the electrolytic capacitor is very high which ranges more than 1µF. the electrolytic capacitors are used in the industry commonly for the applications which are conducted on low frequency such as decoupling applications, power supplies, and applications of audio coupling.

This is because these applications have the frequency limit of nearly 100 kHz.

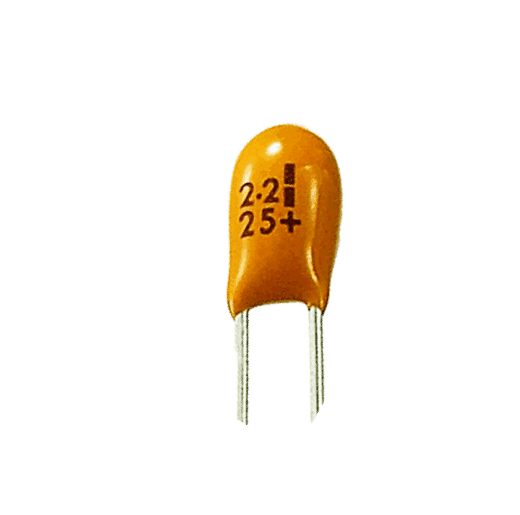

Tantalum Capacitor:

Another type of capacitor which is polarized in nature is tantalum capacitor. The capacitance level provided by the tantalum capacitor at their volume is very high.

One of the drawbacks of the tantalum capacitor is that there is no tolerance in the tantalum capacitor towards reverse biasing which can result in the explosion of the capacitor when exposed to stress.

Another drawback is that it has very low tolerance to the ripple currents and thus they should not be exposed to high voltages (such as voltages which is higher than their working voltage) and high ripple current. The tantalum capacitors are available in both the formats of surface mount and leaded.

Silver Mica Capacitor:

Although the usage of the silver mica capacitors have decreased significantly in the current era, the stability provided by the silver mica capacitors are still very high along with providing high accuracy and low loss.

Also, there is sufficient space available in the silver mica capacitors. The applications where they are primarily used include the RF applications.

The maximum values to which the silver mica capacitor is limited to is approximately 100pF.

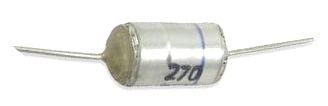

Polystyrene Film Capacitor:

The polystyrene film capacitors provide capacitor of close tolerance wherever required. Also, these capacitors are relatively cheaper than that of other capacitors.

将介电三明治或聚苯乙烯膜电容器中的板滚在一起，从而以管状形式形成了电容器的形状。

The placement of the dielectric sandwich and shape of the capacitor limits the response of the capacitor to high frequencies due to addition of inductance and thus responds to only few 100kHz.

The general availability of the polystyrene film capacitors is in the form of leaded electronics components.

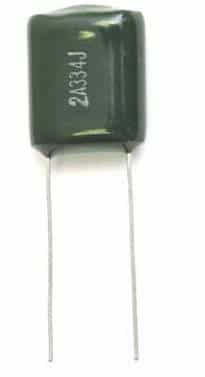

Polyester Film Capacitor:

聚酯膜电容器提供的公差非常低，因此，当先前考虑的成本是成本时，这些电容器被使用。

The tolerance level of a large percentage of the polyester film capacitors available is either 10% or 5% and this is considered as sufficient for a range of applications.

The general availability of the polyester film capacitors is in the form of leaded electronics components.

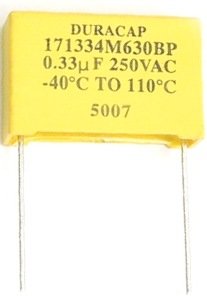

金属聚酯膜电容器

The metallized polyester film type of capacitors consists of polyester films which are metallized and in every other sense, it is similar to the polyester film capacitors or another form of it.

金属聚酯薄膜实现的优点之一是它使电极的宽度很小，从而使电容器也能够以非常小的尺寸包装来封装。

一般的金属化聚的可用性er film capacitors is in the form of leaded electronics components.

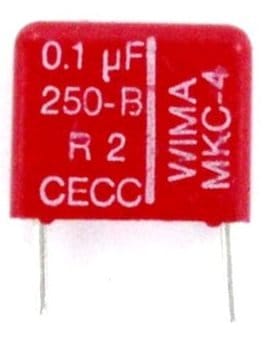

聚碳酸酯电容器：

The applications where the most critical and crucial requirement is high performance and reliability, these applications use the polycarbonate capacitors.

The capacitance value is held over a long period of time by the polycarbonate capacitors since their tolerance level is very high. Such high tolerance levels are achieved because of the stability of the polycarbonate film used in the polycarbonate capacitor.

Additionally, the dissipation factor of the polycarbonate capacitor is very low and they can withstand temperature of wide range and remain stable.

The range of temperature which this capacitor can withstand is between -55ºC and +125ºC. In spite of all these properties, the manufacturing and production of the polycarbonate capacitors has significantly decreased.

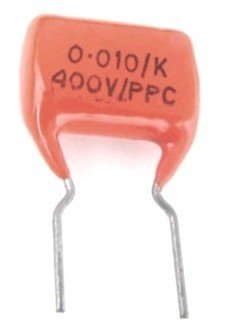

PPC or Polypropylene Capacitor:

在这种类型的电容器中，所需的公差水平高于聚酯电容器所提供的电容水平，然后在这些情况下使用聚丙烯电容器。

The material used for the dielectric in the polypropylene capacitor is a polypropylene film.

The advantage which the polypropylene capacitor has over the other capacitors is that it can withstand very high voltage across a time period and thereby the change in the capacitance level due to the increase and decrease of voltage over a time period is very low.

The polypropylene capacitor is also used in cases where the frequency being used is very low, mostly in the range of 100kHz being the maximum limit.

The general availability of the polypropylene capacitor is in the form of leaded electronics components.

Glass Capacitors:

The dielectric which is used in the glass capacitor is made up of glass. Even though the glass capacitors are expensive, their performance levels are very high.

The RF current capability of the glass capacitors is very high along with the loss being extremely low. Additionally, there is absence of any piezo-electric noise in the glass capacitors.

All these and some additional properties of the glass capacitors make them most appropriate and ideal for RF applications which require high performance.

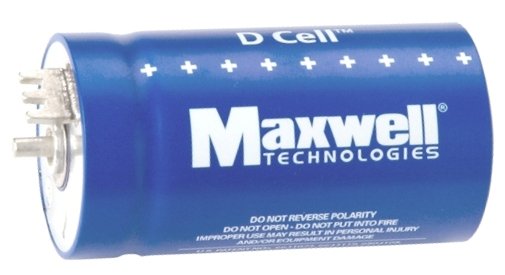

Supercapacitor:

已知超级盖板的其他名称是超级电容器或超级电容器。

这些电容器的电容值非常大，因此是它们的名称。超级胶囊的电容水平几乎朝着数千名法拉德河流。

The ultracapacitor is used in the industry for providing a supply of memory hold-up along with various uses within the realm of automotive applications. The different major types of the capacitors are included under the supercap.

Along with them, there are various other capacitor types of capacitors which are used when the applications are specialized in nature.

The identification of the capacitors is majorly done through their parameters such as values which are marked over the cases of the capacitors. In order to display the parameters in a manner which is compact, the markings of the parameters are done in the form of a code.

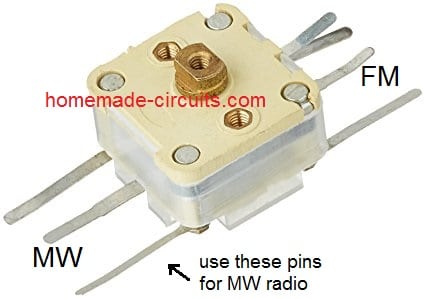

VARIABLE CAPACITORS

可变电容器是用交替的金属板构建的，单个套件是固定和不可移动的，另一组可移动。

板用介电或固体介电隔离。一组板的运动移动了板的整体部分，从而改变了板上的电容。

此外,标准桶之间的分化ing capacitors utilized for repeated manipulation (e.g., to adjust a radio receiver station) and trimmer capacitors intended for preliminary setting up of a tuned circuit.

调谐电容往往是更大、更强大in structure and usually of air dielectric type.

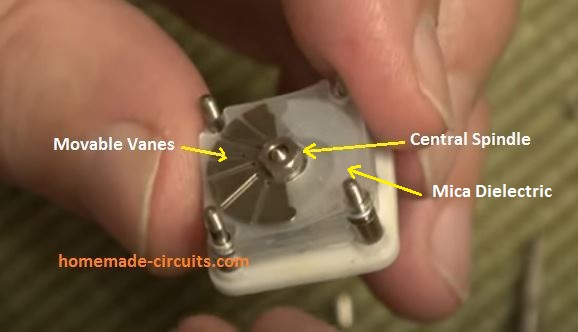

修剪器电容器are often determined by a mica or film dielectric having a reduced quantity of plates, where capacitance is tweaked by rotating a middle bolt to alter the strain across plates and dielectric mica.

Due to the fact these are more compact in size, even so, a trimmer capacitor might at times be applied like a tuning capacitor on a pocket sized FM radio circuit, although exclusive mini tuning capacitors are manufactured to install rightaway on a PCB.

When it comes to tuning capacitors, the structure of the vanes tells the way in which capacitance varies as the spindle is moved.

所有这些属性通常在以下描述之一中分类：

1. Linear: where each spindle rotation degree generates a similar alteration in capacitance. This is the most typical kind selected for radio receivers.

2. Logarithmic: where each degree of spindle movement generates a consistently varying level of frequency of a tuned circuit.

3. Even frequency: where every single spindle movement degree delivers the same variation in frequency in the tuned circuit. 4. Square law: in which the variation in the capacitance is proportionate to the square of the angle of spindle movement.
